Counter-UAS · Passive RF · Made in Sweden

SEE THE
UNSEEN.

Passive RF drone detection for critical infrastructure and defense. From sensor to decision in under a second.

Request a demo Watch the film
MOBILE SURVEILLANCE UNIT AUTONOMOUS FIELD MONITORING

01 / WHY

Drones changed the threat picture overnight. We give operators the second-by-second truth of their airspace — passive, silent, always on.

02 / CAPABILITIES

  1. 01

    DETECT

    Passive RF from 40 MHz to 6 GHz. Remote ID and DJI Drone-ID decoded natively — no emissions, no warning to the operator on the other end. OcuSync 4 decoding.*

  2. 02

    CLASSIFY

    Signals fuse into tracks: airframe, position, altitude, speed, pilot and home point. Trusted craft whitelisted, threats flagged.

  3. 03

    ALERT

    Geofenced zones raise alarms in under a second — to the operations map, e-mail, webhooks and TAK units in the field. A hardware I/O module bridges legacy alarm systems, with secure one-way integration into red networks.

  4. 04

    COMMAND

    One picture for every site and every team. Cloud or on-premise, multi-organisation, with full incident replay and forensics.

* Ask us for more information.

03 / SOLUTIONS — 01 SENSORS

ODIN RF-1

A passive RF sensor built for the field. Sealed milled aluminium housing, one PoE cable, silent watch.

RF-1 — PRODUCT FILM Watch the full film
RF RANGE
40 MHz – 6 GHz, SDR-based
RANGE
> 8 km directional (60°) · > 2 km omni
ENVIRONMENT
IP66 · −40 °C to +70 °C
POWER
PoE IEEE 802.3at · < 10 W
FORM
240 × 240 mm · wall, pole and VESA mount
CERTIFICATION
CE (RED) · Made in Sweden

NEXT — ODIN RF-2 · ADS-B + AIS · IN DEVELOPMENT

03 / SOLUTIONS — 02 APPLICATIONS

FIXED OR MOBILE

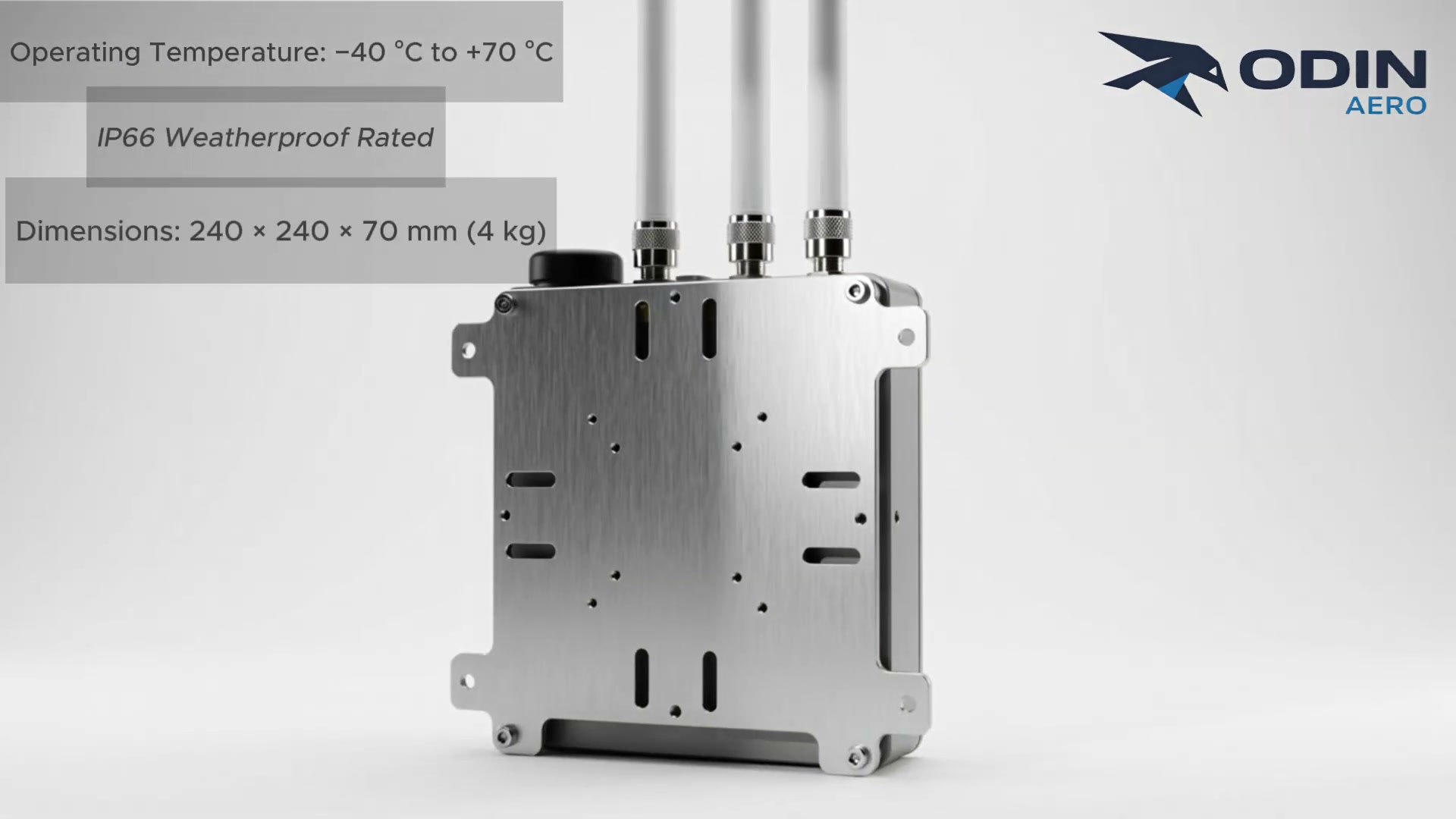

ODIN RF-1 sensor unit, rear mounting plate.

FIXED INSTALLATION

Networked RF-1s on rooftops and masts guard a site around the clock. One PoE cable each; alarms flow to your operations centre, legacy alarm systems over the I/O module, and TAK units in the field.

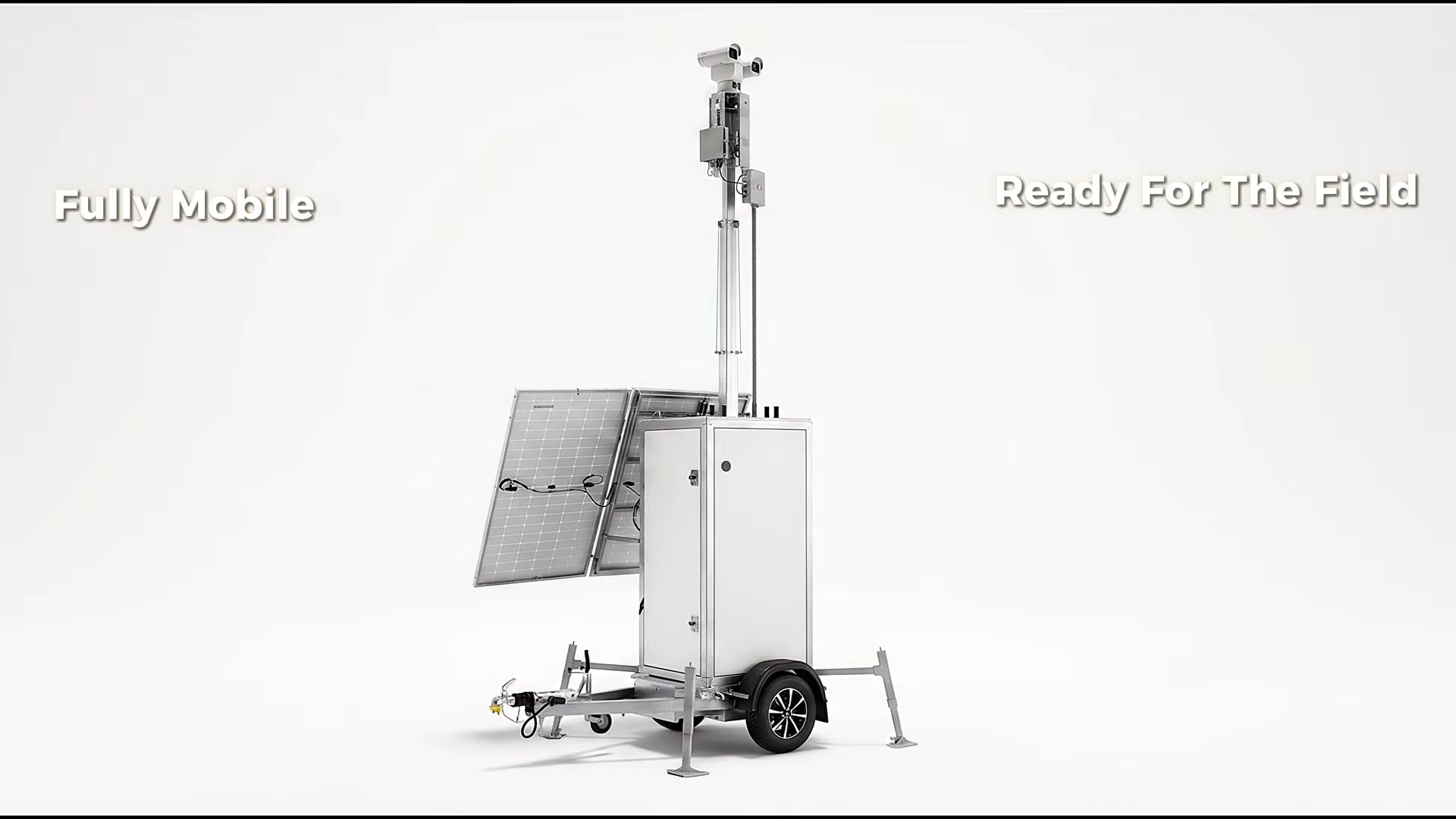

Odin Aero mobile surveillance trailer with mast raised, solar panels deployed.

MOBILE SURVEILLANCE UNIT

An autonomous trailer for the places infrastructure hasn't reached: extendable mast, optical and thermal cameras, dual solar panels, large battery pack and backup generator. Tow it in — it watches.

03 / SOLUTIONS — 03 CITY NETWORKS

PROTECTION
AS A SERVICE

City-wide UAV protection without owning a single sensor. Expand your reach with the click of a button — sensor by sensor, district by district. One shared national picture, forensics on demand.

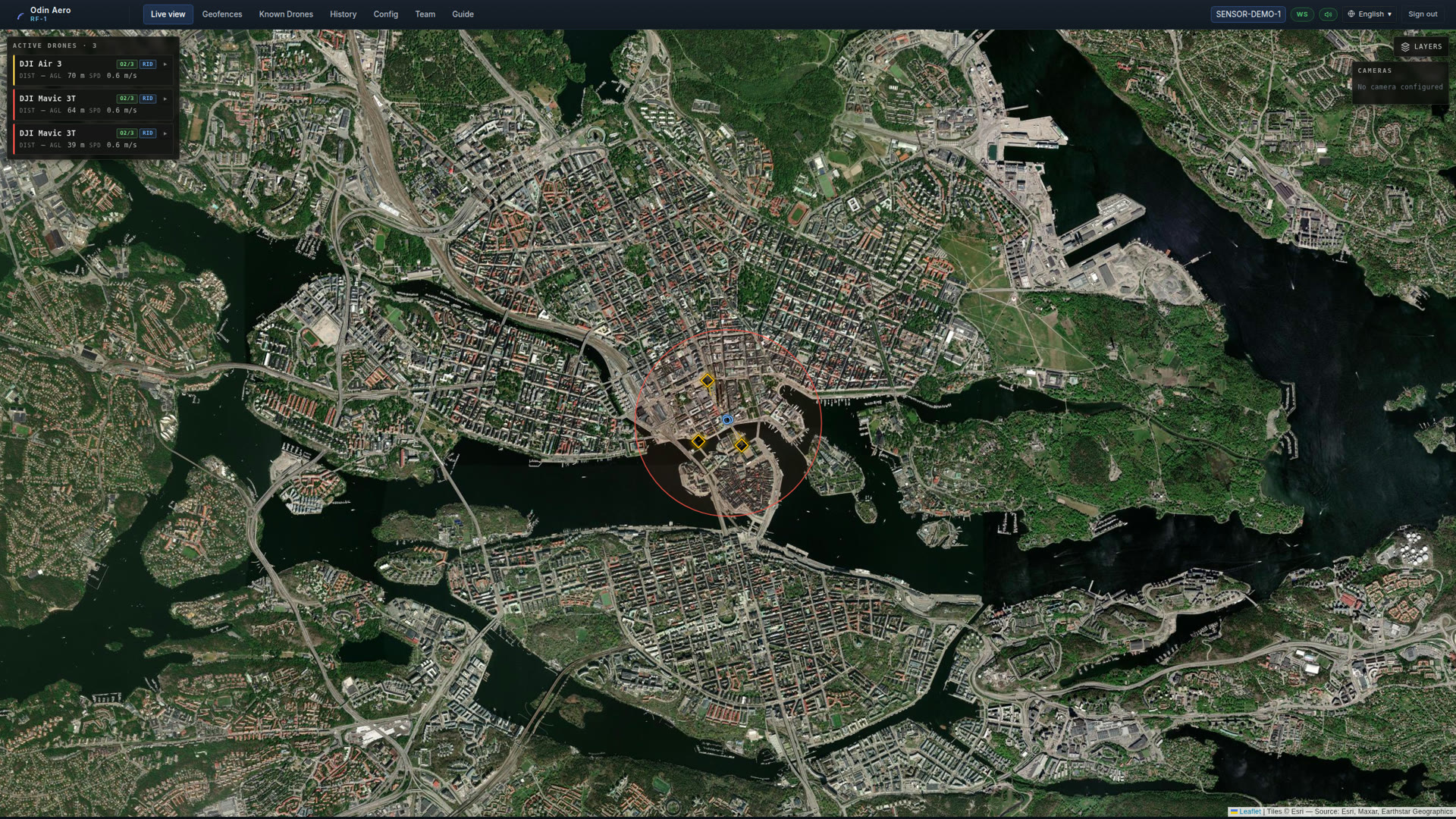

Odin Aero live operations view: satellite map of Stockholm with three tracked drones, telemetry cards and a geofenced alarm zone.
LIVE VIEW — STOCKHOLM DEMO ENVIRONMENT 24/7 · MULTI-SENSOR · CLOUD OR ON-PREM

04 / CONTACT

REQUEST
A DEMO.

info@odinaero.se
